Elektron Outbox 8 audio/cv breakout box

Beskrivning

OUTBOX 8

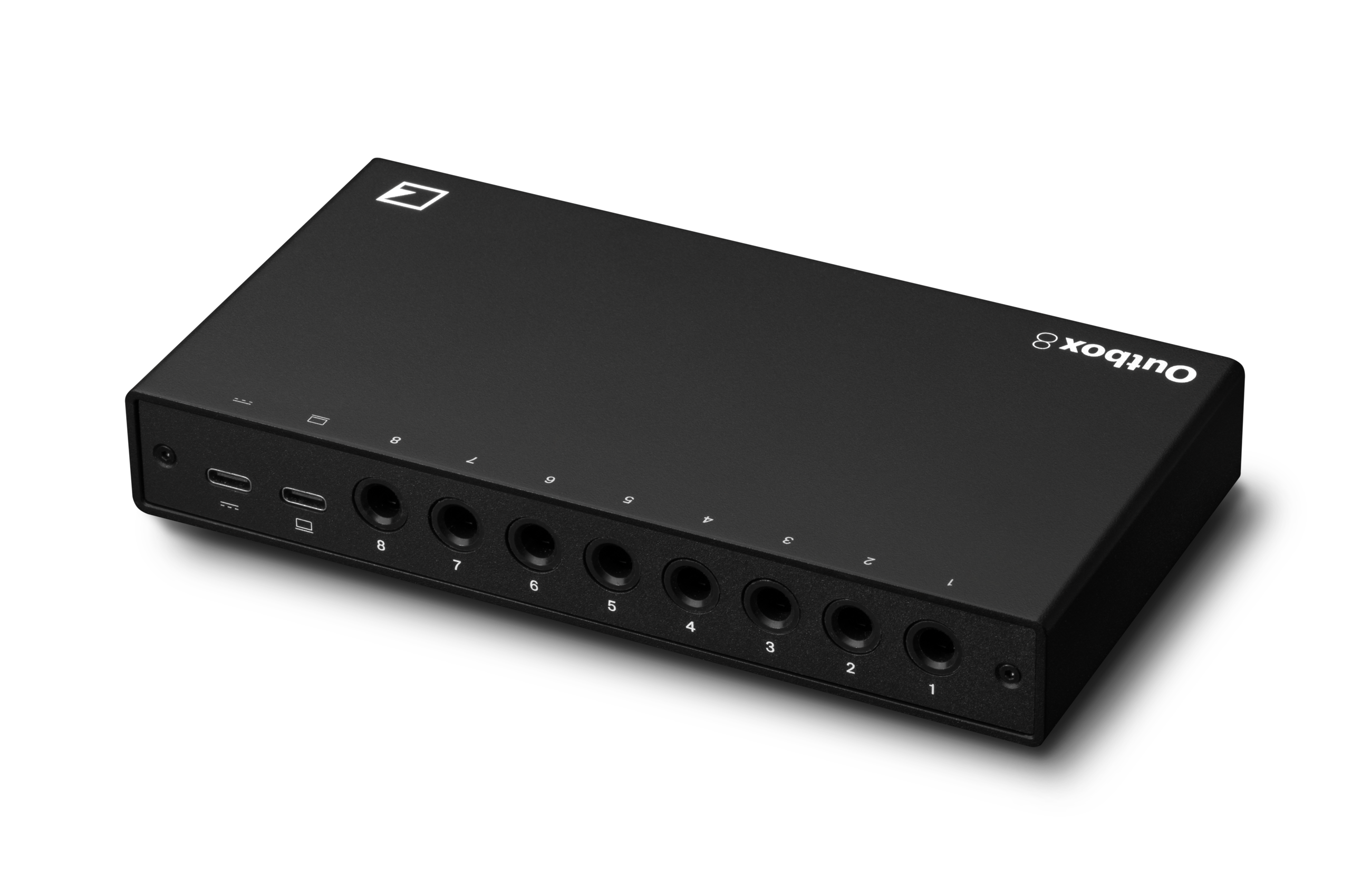

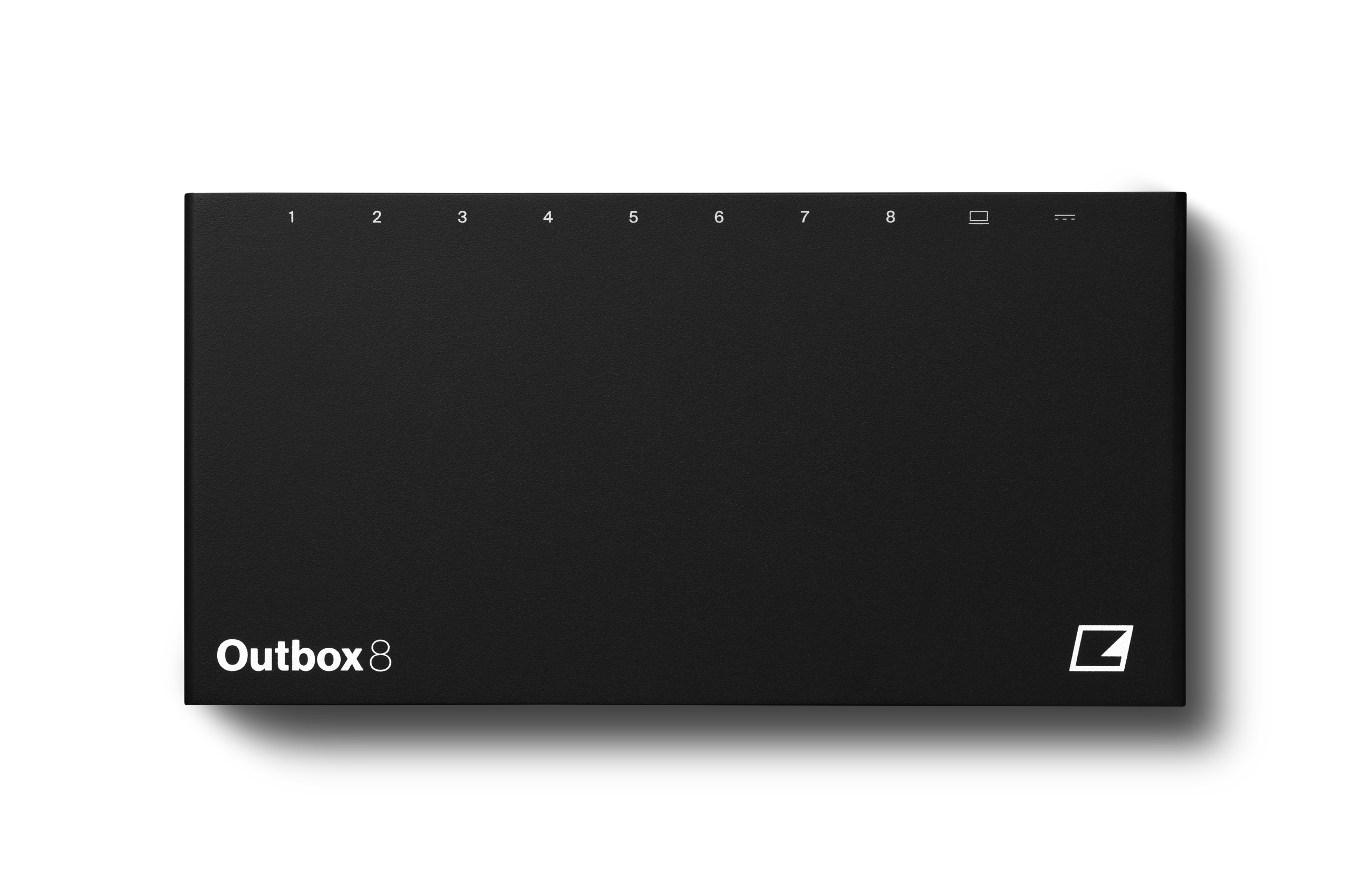

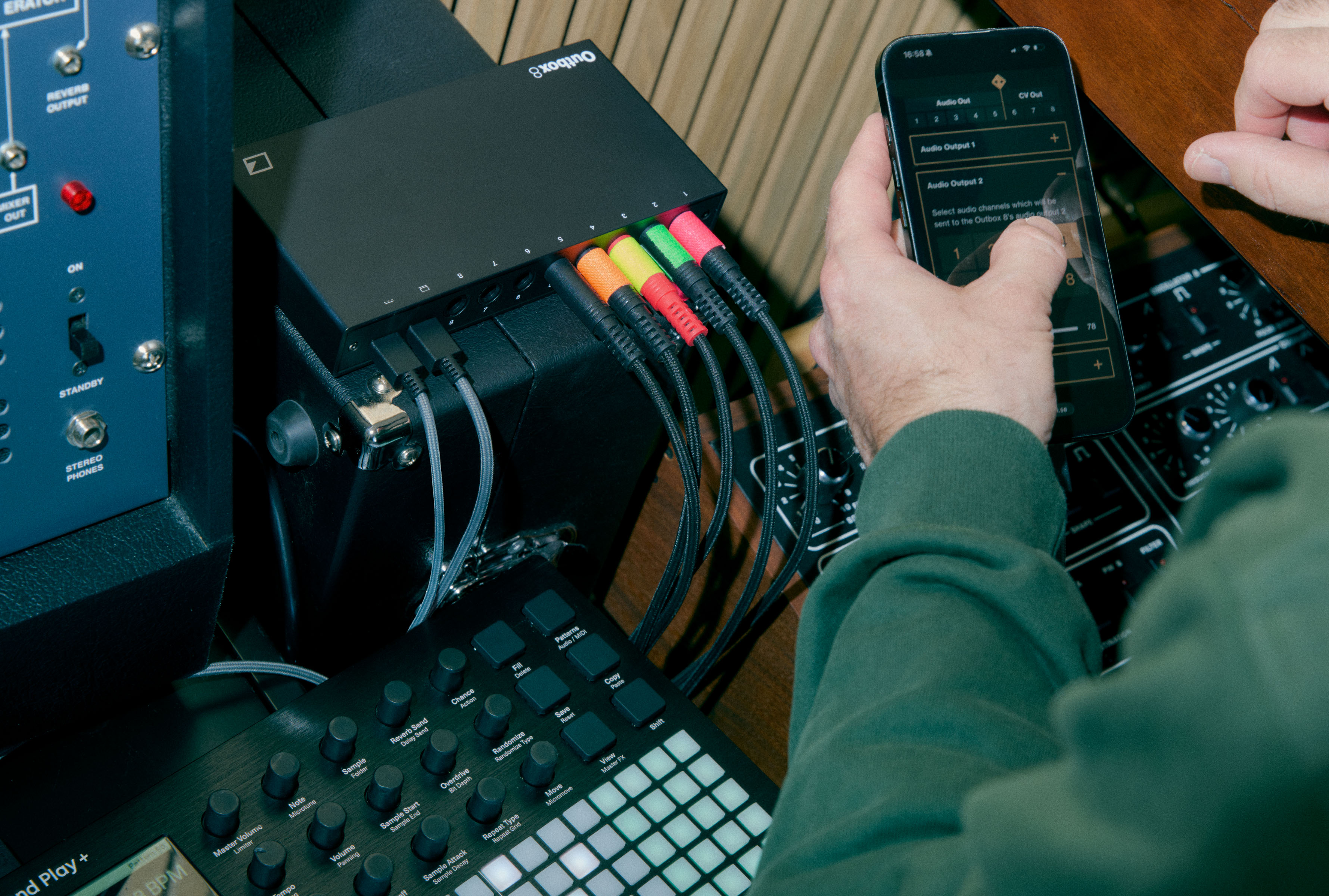

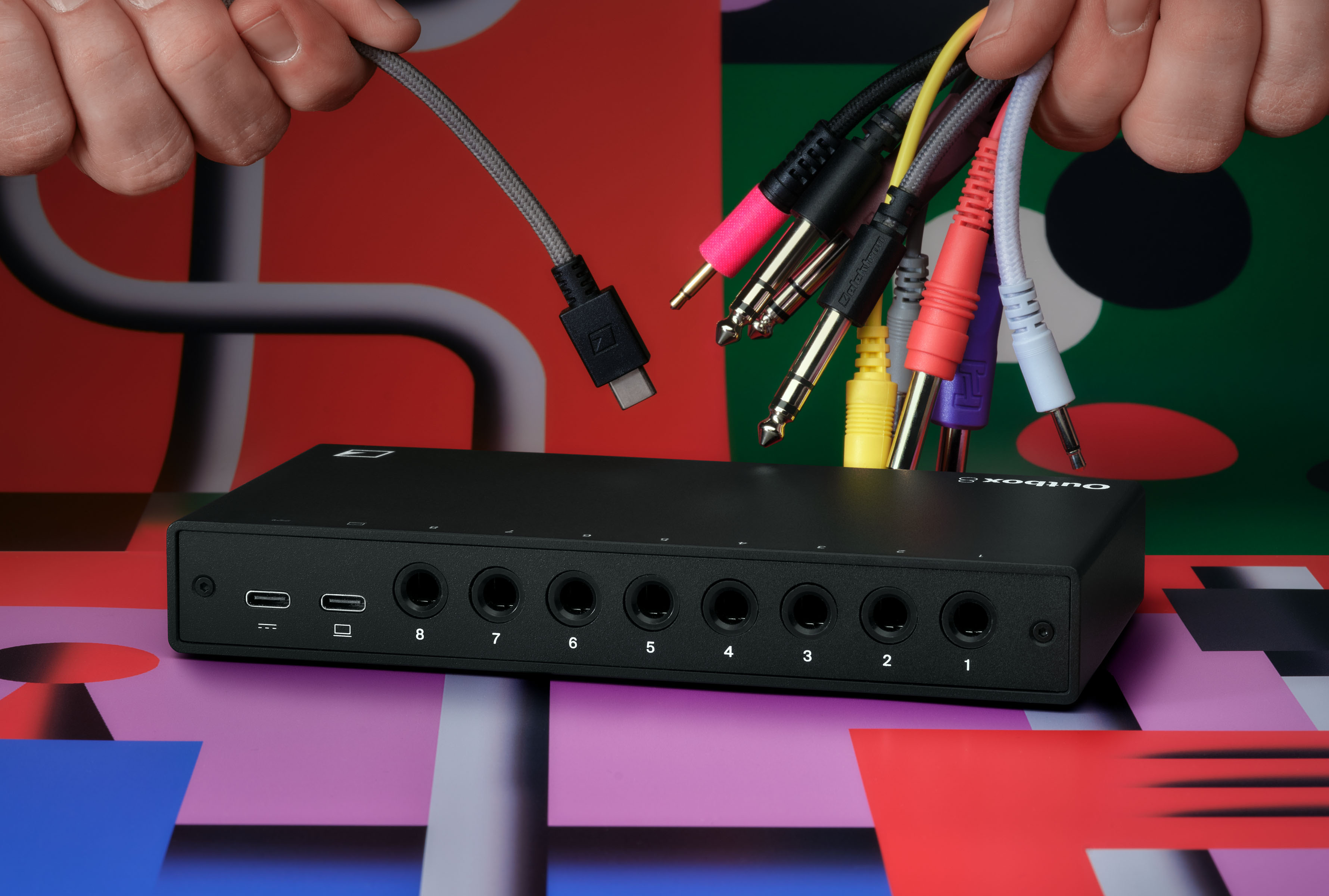

Outbox 8 is a versatile eight-channel audio/CV breakout box and USB host/device designed to expand your connectivity, with creative possibilities to boot.
It adds eight fully configurable physical outputs to a connected device, letting you send audio and CV in any combination its capabilities allow.
Route your audio to mixers, effects, and more -channel by channel.
Or convert MIDI into CV signals to control your modular rig and other CV-controllable devices.
Whatever the moment calls for.
Outbox 8 is compatible with Elektron Overbridge-enabled units, USB class-compliant MIDI devices, and many USB class-compliant audio devices.
USB MIDI support is broad, while audio compatibility can vary by manufacturer and firmware; check Elektronauts for the latest confirmed devices.
Outbox 8 also works as an audio interface, adding eight more outputs to your computer.
Send audio: Outbox 8 enables you to route individual tracks or submixesfrom your compatible Elektron machine for external processing, mixing, or performance.
Send CV with Outbox 8, you can assign outputs to CV duties -pitch, gate, trig, value lin, or clock -to bring modular and other CV-controllable gear into the same setup.
MIDI to CV: Use Outbox 8 as a dedicated USB MIDI-to-CV interface.
Play, sequence, modulate, and synchronize modular systems and other CV-capable instruments with your Elektron box.
Or connect a MIDI controller to play and control them directly.
Eight-output computer audioConnect Outbox 8 to your computer, tablet or phone and use it as an eight-output USB audio interface.
Route channels from your DAW to mixers, effects, monitors, or other external hardware, while also converting MIDI into CV where needed.

————-KEY SPECIFICATIONS:
8 × 1/4” impedance-balanced DC-coupled audio/CV
outputs 48 kHz, 32-bit D/A converters
CV output range: +/-5
VCV signal types: GROUNDED, PITCH V/OCT, PITCH HZ/V, VALUE LIN, TRIG, GATE, and CLOCK
1 × USB Type-C power input
1 × USB 2.0 High-Speed Type-C data port, supporting USB Power Delivery, dual-role data and dual-role power
1 × status LED
Power requirement: 5 V / 0.5 A / 2.5 W or higher
Dimensions: W 176 × D 90 × H 28 mm (including feet)
Weight: approximately 0.35kg
